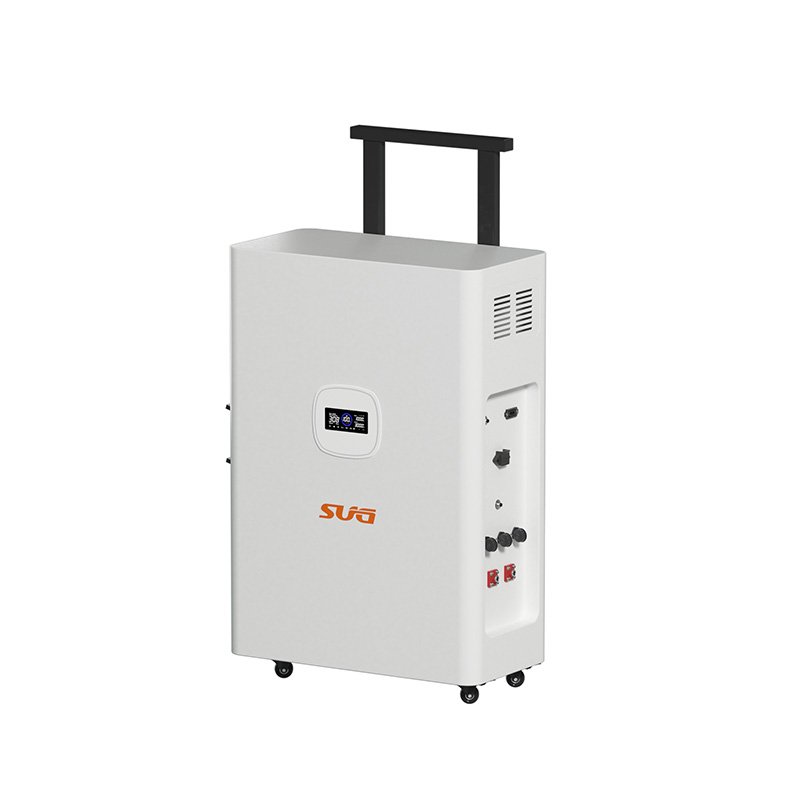

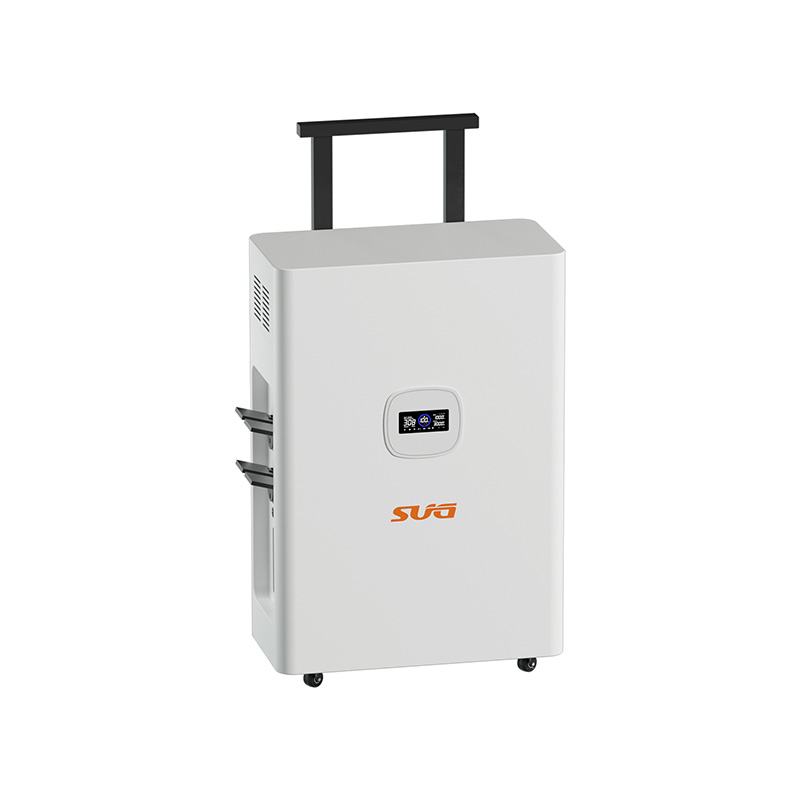

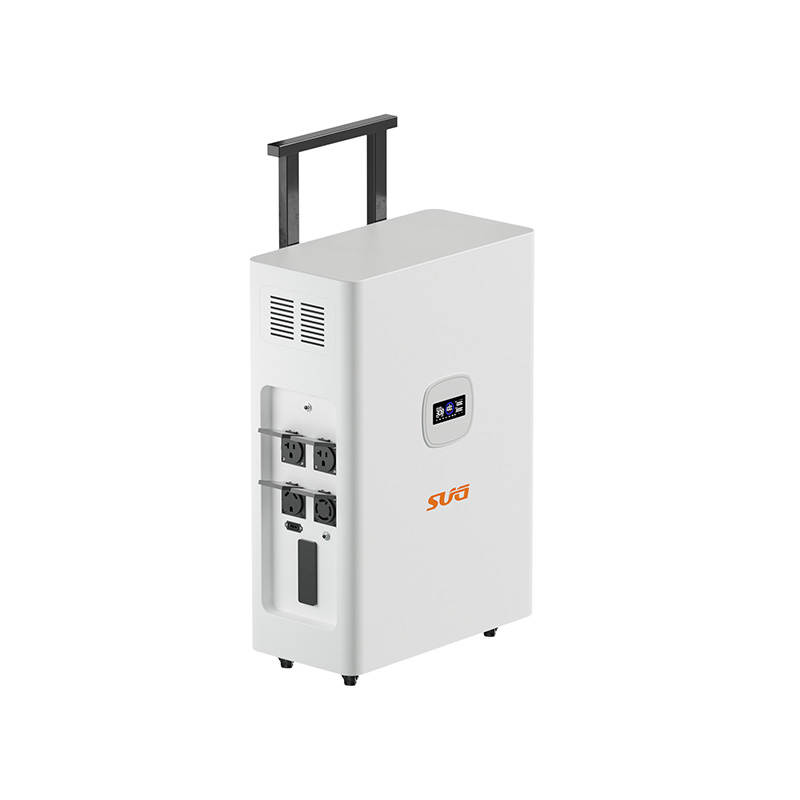

Product Introduction
SIPT this energy storage system is one of a series of industrial energy storage products designed and developed independently. Long cycle life, high safety standard BMS software protection, sturdy shell, beautiful appearance, easy installation and use, etc. Widely used in various energy storage systems.
Product features
1. The module is non-toxic, non-polluting and environmentally friendly.
2. Cathode material is made from LiFePO4 with safety performance and long cycle life.
3. Battery management system (BMS) has protection functions including over- discharge, over-charge, over-current and high/low temperature.
4. The system can automatically manage charge and discharge state and balance voltage of each cell.
5. Adopted self-cooling mode rapidly reduced system entire noise.
6. The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
7. Multi-functional LED intelligent digital screen display.
Products Specification
Model | SIPT 6KW 5kWh |
Battery parameters | |
Module model | 51.2V100Ah |
Battery type | LFP IP16S |
Nominal capacity | 5.12kWh |
Nominal voltage | 51.2V |
Working voltage | 43.2-58.4V |
PV input | |
PV array mppt voltage range | 12-30V/30V-150V |
Maximum solar charge Current | 10A/30A |
AC input | |
Voltage | 120VAC/240VAC |
AC input current | 15A/10A |
AC output | |
AC output | 120V20A/120V30A/240V30A |
DC output | |
DC output | 12V30A/5521x2(12V10A) |
Type-c | PD 100Wx1/ 30Wx1 |
USB | OC 12Wx2/18Wx2 |
Overall parameters | |
Communication | RS485,Bluetooth,Rs232 |
Storage temperature | -20℃~55℃(Recommended) |
Working humidity | <95%(RH)No Condensation |
Working temperature | -10℃~40℃ |
Working altitude | ≤2000m |
Cooling method | Fan cooled |
Protective class | Ip20 |
Weight | 80kg |
Dimension | 550x285(315)x850(995)mm |
Design life | 10 Years(25℃) |
Cycle life | >6000(25℃), 80%DOD |
